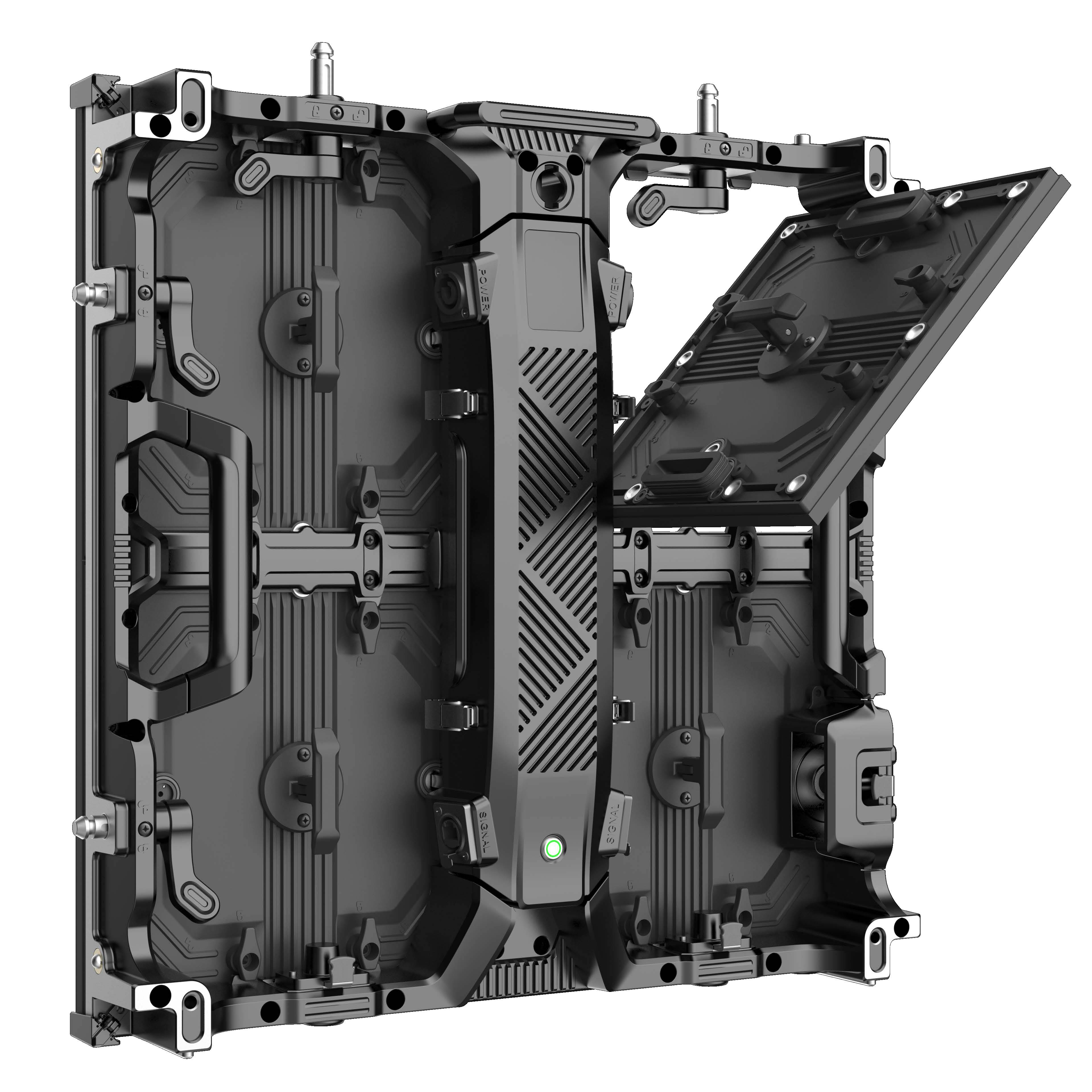

• module front service

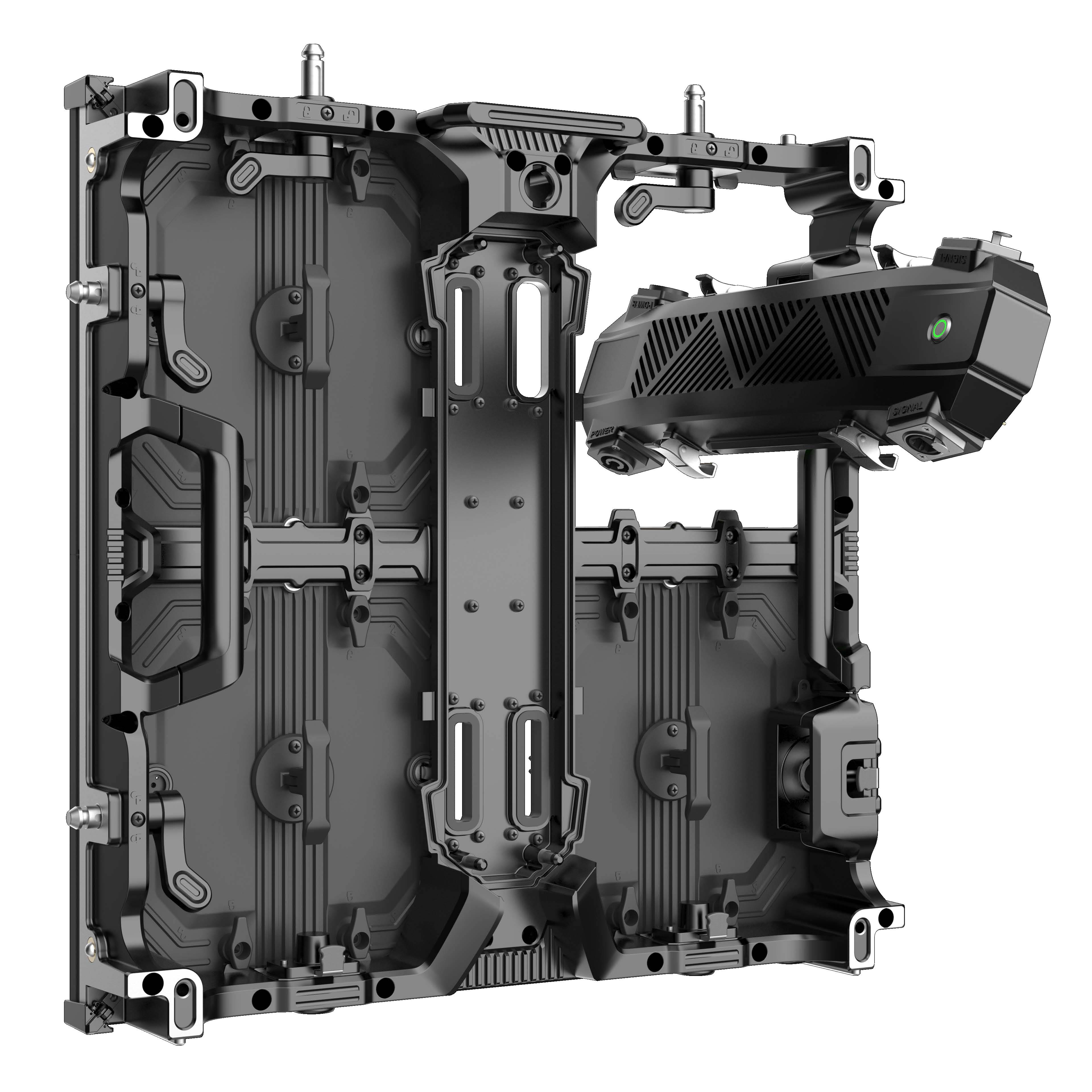

  • power front service

Rental Screen Series L7--the latest private rental panel

L7 series is our latest private rental panel,the LED rental display solution for public events helps customers hold a feast for tens of thousands of people, calls for a group carnival.

Structure module, control module and display module, realize the general exchange of module, control box and module;
Full front and back maintenance, realize fast maintenance in different occasions.
Die casting aluminum box, strong toughness, high precision, not easy to deform;
Ultra light and thin box, 80mm thick, standard single box only weighs 13.5kg/pcs;
Adopt mute control box, no fan, technology sense and excellent heat dissipation performance, work with zero noise.
The 500x500mm box can be combined with the 500x1000mm box easily, which greatly meets the construction requirements of different areas

Get A Quote

Product Series Model


L7

Cabinet size:500×500×75mm/500×1000×80mm

Module size:250×250mm

Weight:6.8kg / 12.5kg

Indoor (mm):P1.95 / P2.6 / P2.97 / P3.9

Outdoor (mm):P2.97 / P3.9 / P4.8背面.jpg

White balance brightness:5500-6500nits

Input:AC100-240v 50/60HZ

Maintenance Method:Front /Rear maintenance

Material: Die-cast aluminum

Use environment:Indoor/Outdoor

Curving(concave&convex):

(±15°±6°±3°/0°)optional

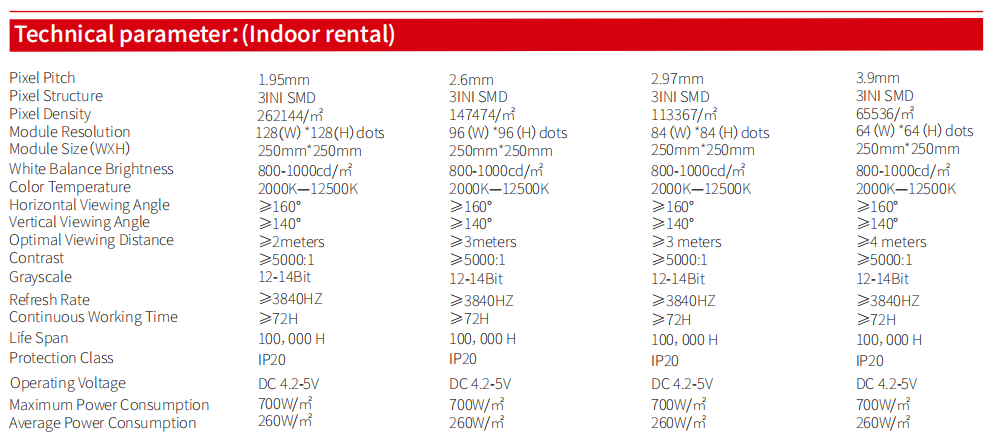

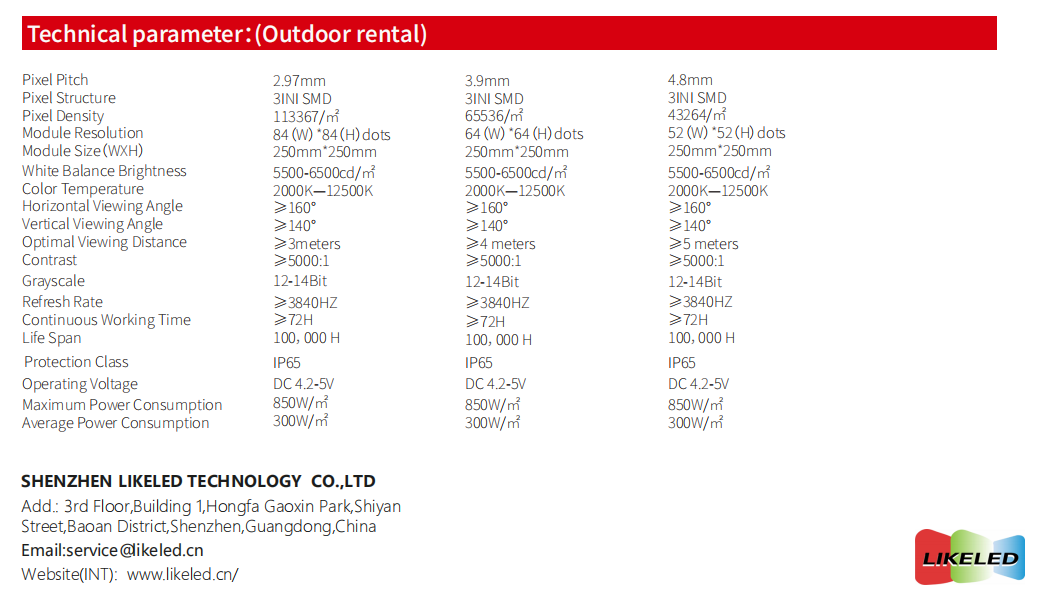

Technical Parameters
