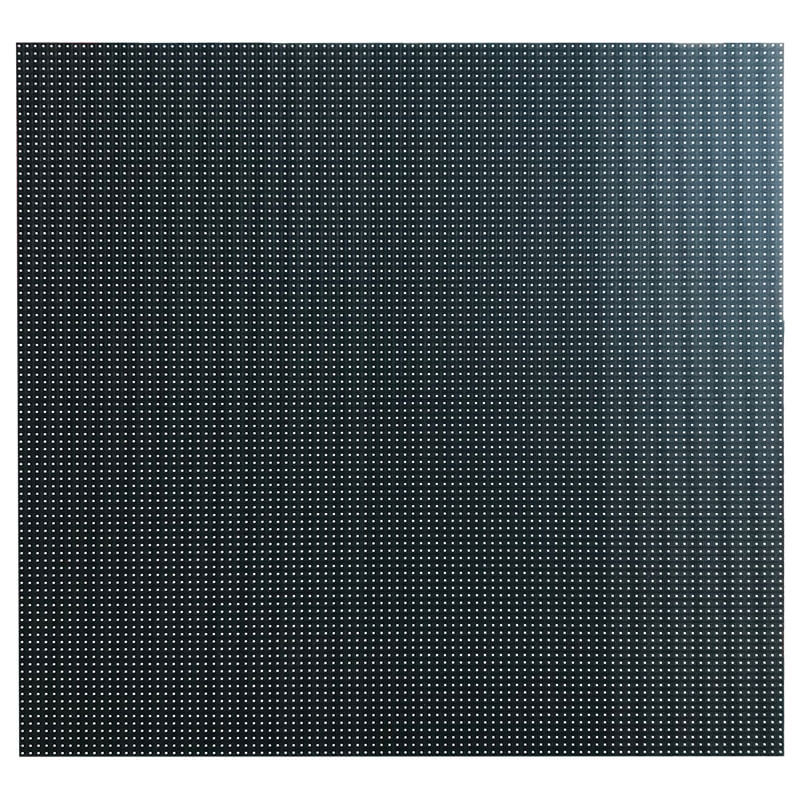

Outdoor Display OE
Outdoor fixed installationCNC precision machining magnesium aluminum cabinet, lighter and handy.
Precision control technology to ensure that the screen is flat and seamless.
No stitching, super wide viewing angle, uniform brightness.
Product advantages:

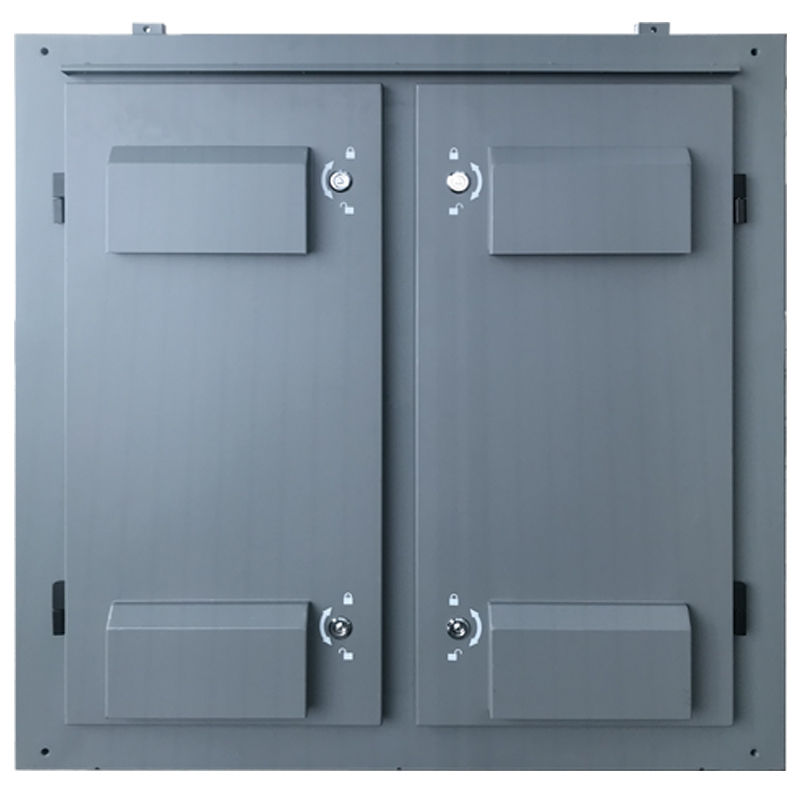

CNC magnesium aluminum cabinet
Color and brightness adjustable
Excellent viewing angle
High brightness and contrast
High refresh rate
IP65 outdoor water proof level
Product Series Model
P3.3
P4
P5
P5.92
P8
P10
Technical Parameters
Outdoor Display OE
| Outdoor | ||||||
| Pixel Pitch | P3.3 | P4 | P5 | P5.92 | P8 | P10 |
| LED lamp | SMD1921 | SMD2020 | SMD2727 | SMD2727 | SMD3535 | DIP346 |
| Density | 9018dots/m2 | 112896dots/m2 | 40000dots/m2 | 28476dots/m2 | 15625dots/m2 | 10000dots/m2 |
| Brightness | 1000nits | 6000-6500nits | 5500-6000nits | 5500-6000nits | 5000-5500nits | 7000-7500nits |
| IP rating | IP31 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Cabinet Materiel | Die-casting Aluminum | Die-casting Aluminum | ||||
| Scan | 24 scan | 1/10 scan | 1/8scan | 1/9scan | 1/5scan | 1/4 scan |
| Module weight | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg |
| Cabinet Weight | 27kg | 27kg | 27kg | 27kg | 27kg | 27kg |

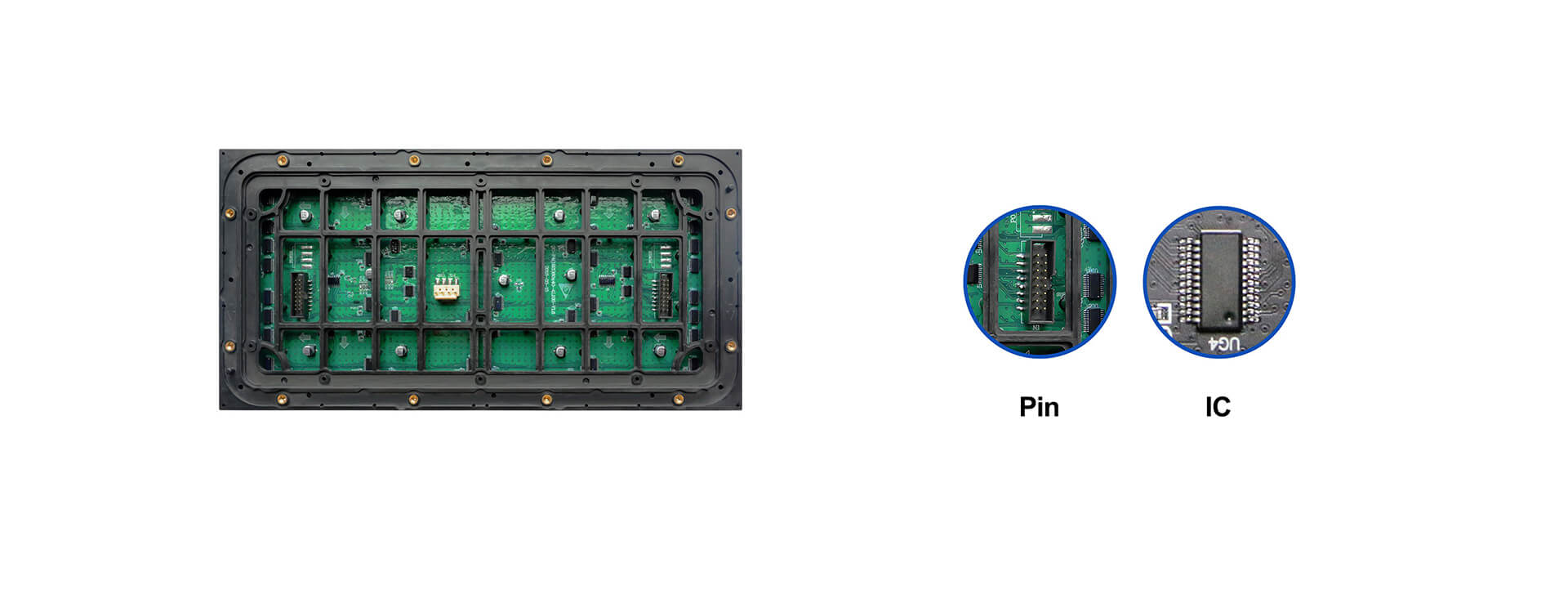

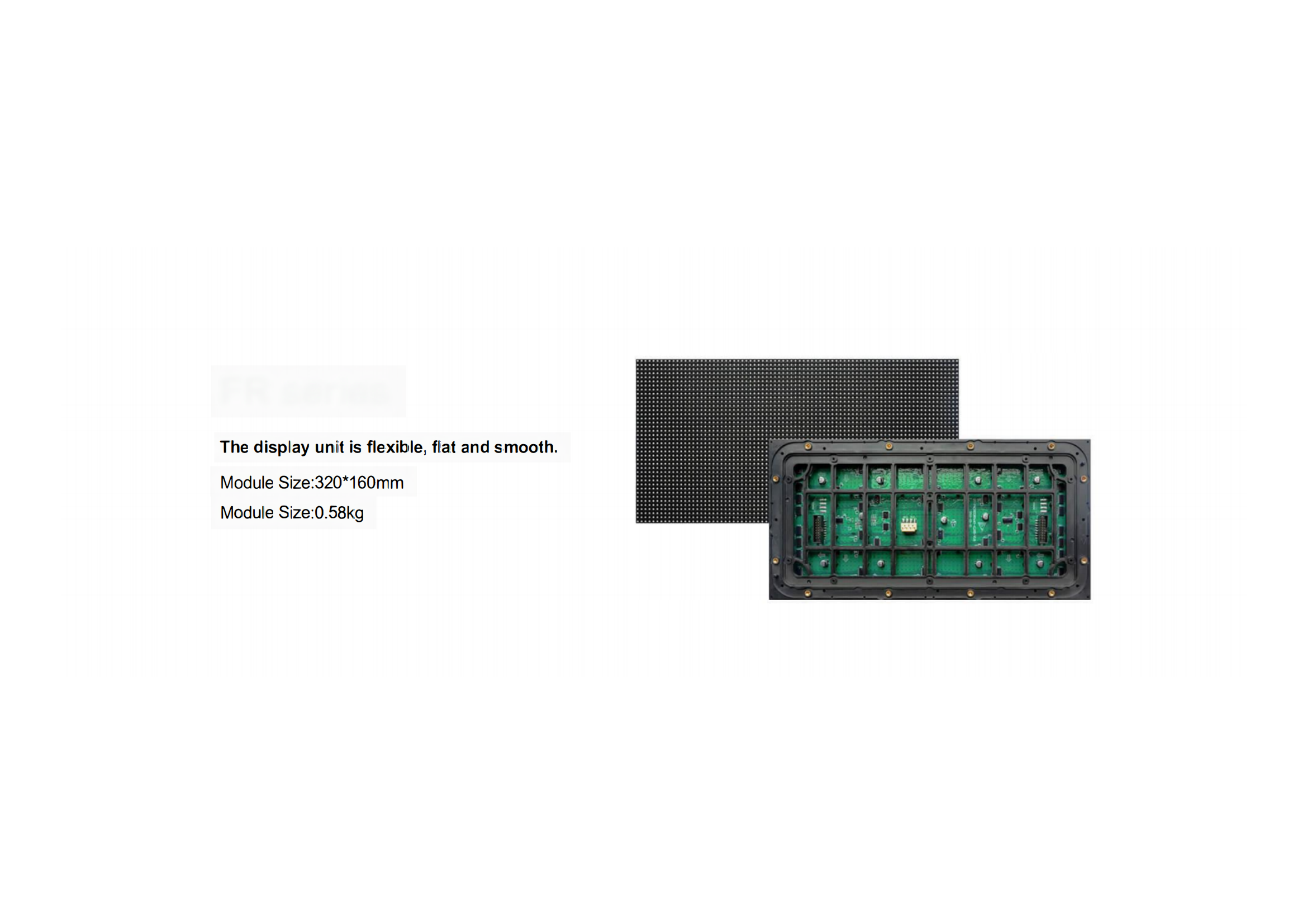

| Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |

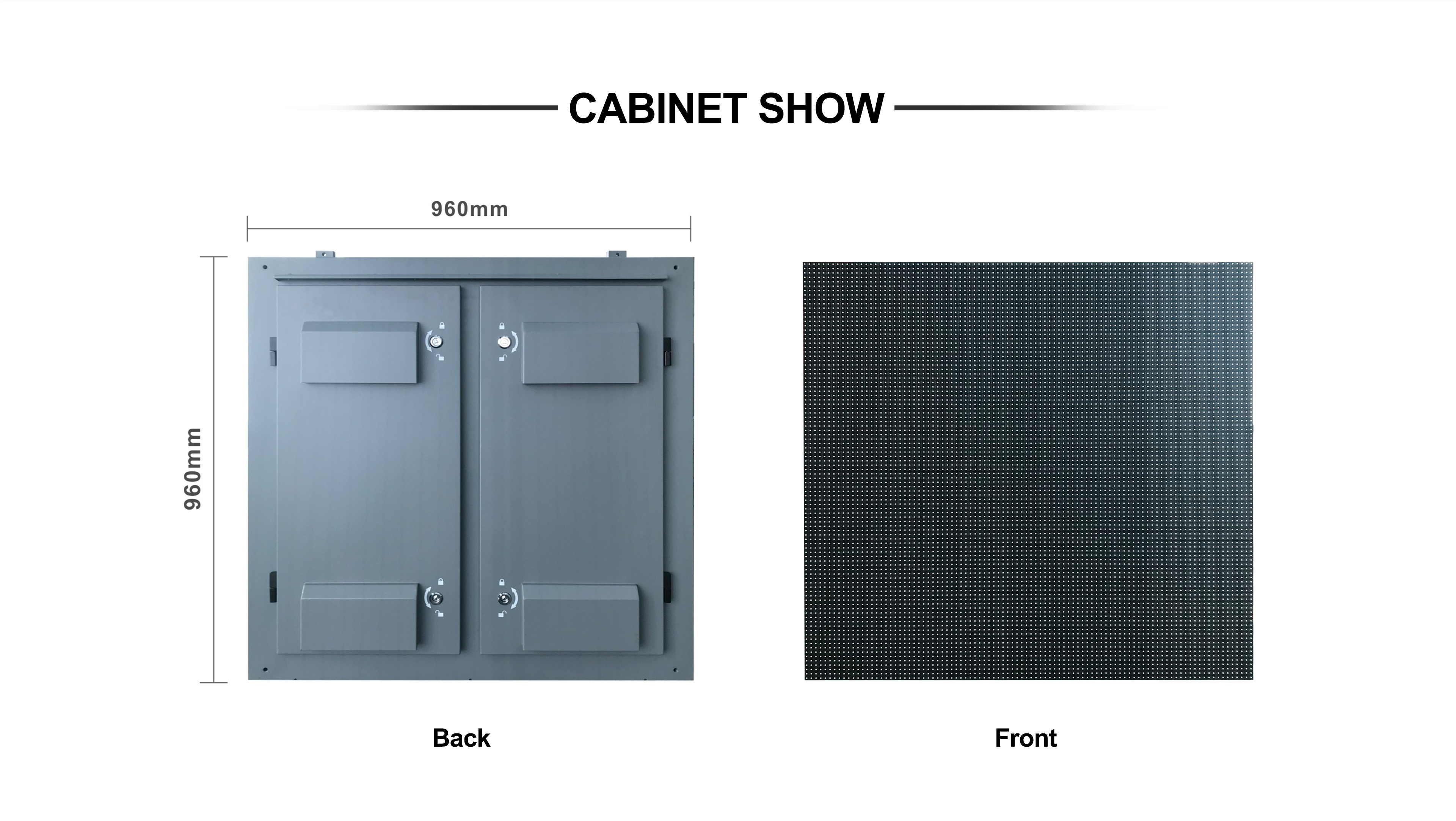

| Cabinet size | 960*960mm | 960*960mm | 960*960mm | 960*960mm | 960*960mm | 960*960mm |
| Module pixel | 96*48dots | 80*40dots | 64*32dots | 54*27dots | 40*20dots | 32*16dots |
| Cabinet pixel | 192*192dots | 240*240dots | 192*192dots | 162*162dots | 120*120dots | 96*96dots |
| Max Power | 570w/sqm | 570w/sqm | 570w/sqm | 570w/sqm | 570w/sqm | 570w/sqm |
| Average Power | 150w/sqm | 150w/sqm | 150w/sqm | 150w/sqm | 150w/sqm | 150w/sqm |
| Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | |||||
| Control way | synchronous/asynchronous | |||||
| Brightness control | 256 level | |||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||||
| Work humidity | 10％ ～ 90％ | |||||
| Work temperature | ﹣20 ～﹢50℃ | |||||
