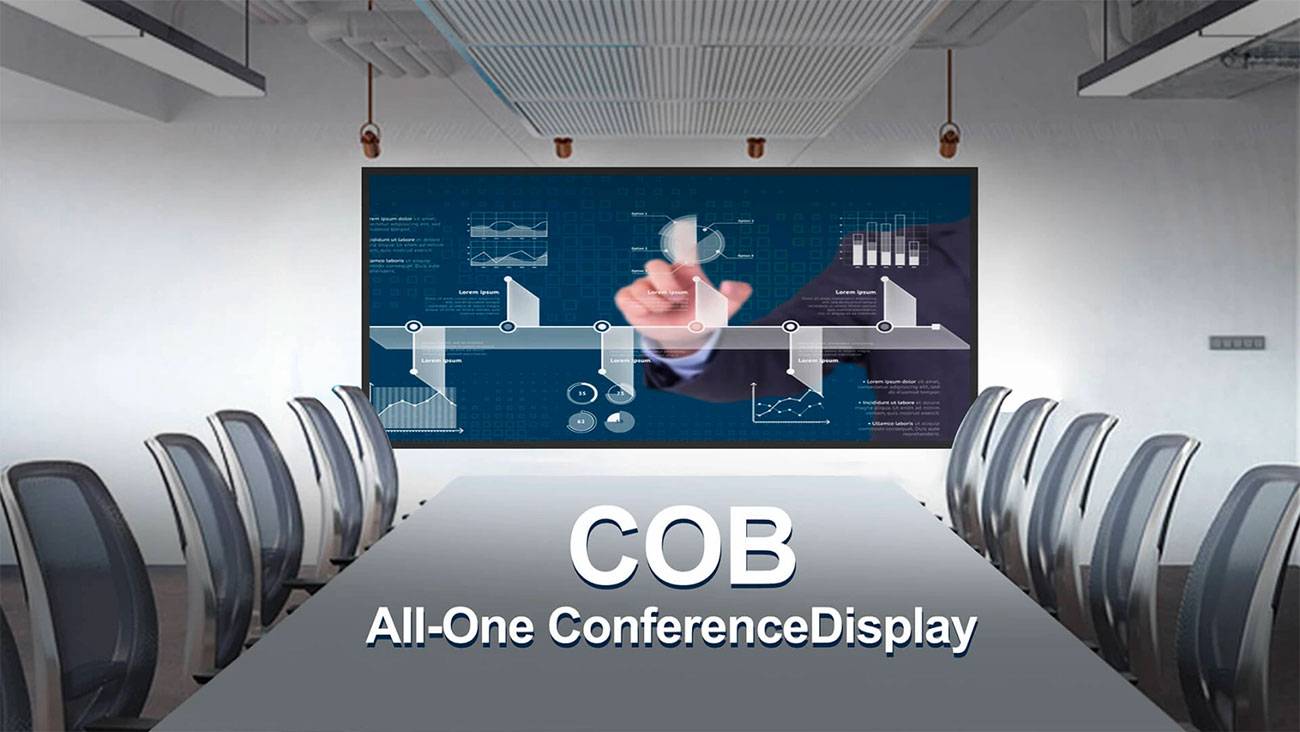

Fine Pixel Pitch COB All-one conference LED display (TV)

Bluetooth remote controller
Resolution of each up to 1920*1080@60HZ

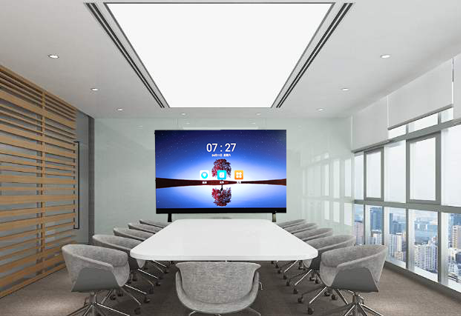

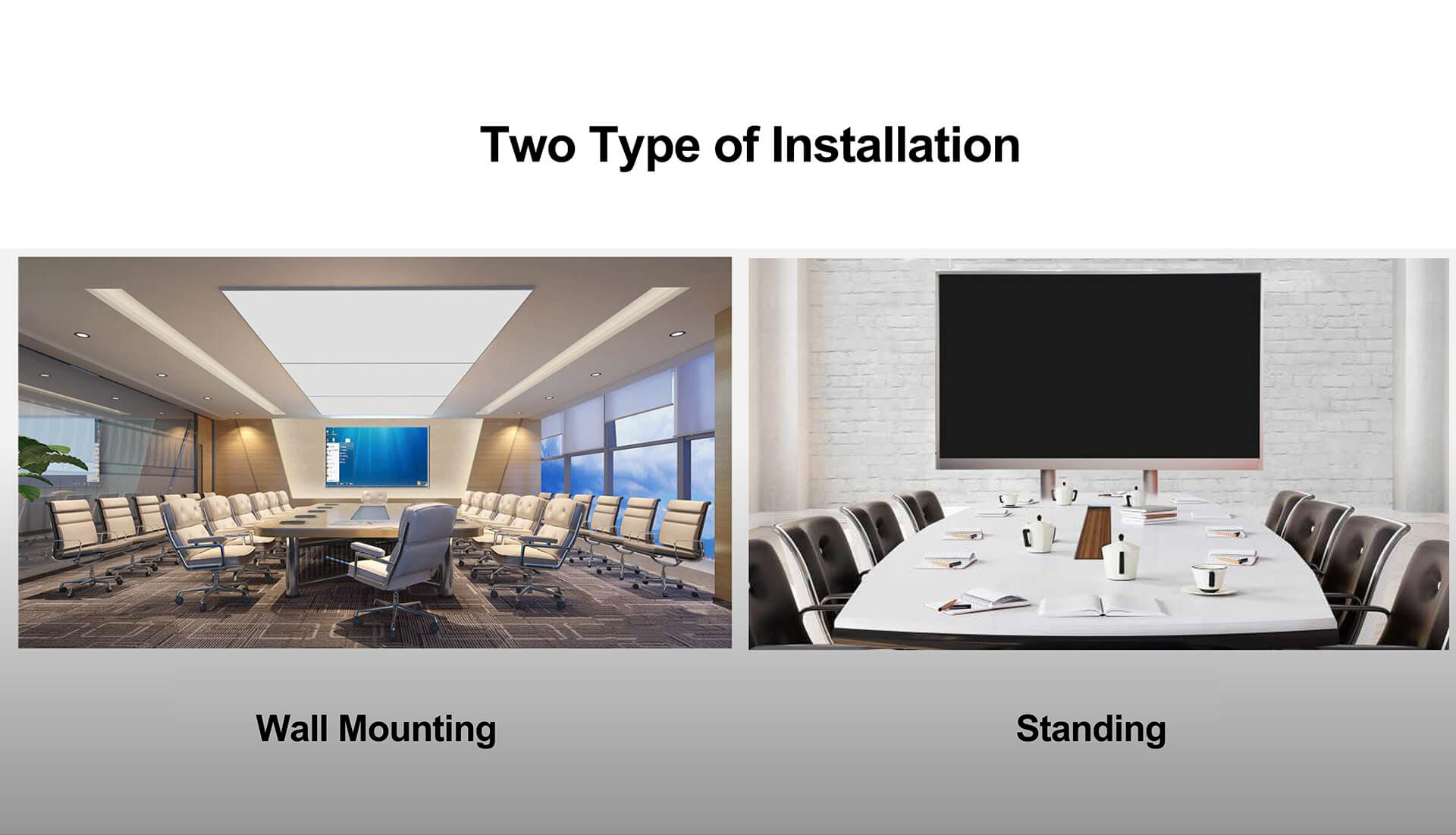

Two type of installation:wall mounting/standing

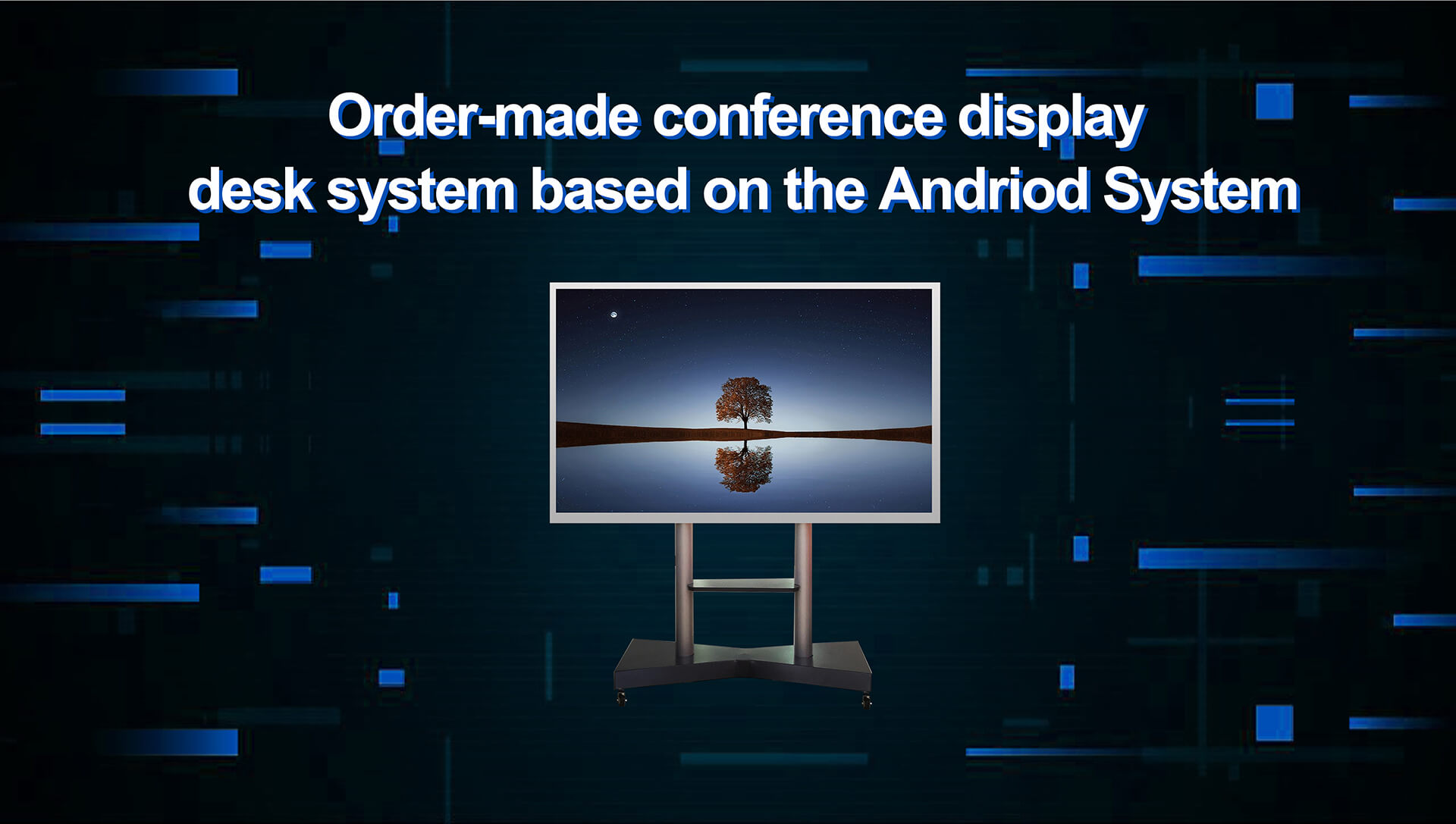

Order made conference display desk system based on the Android system

Product advantages:

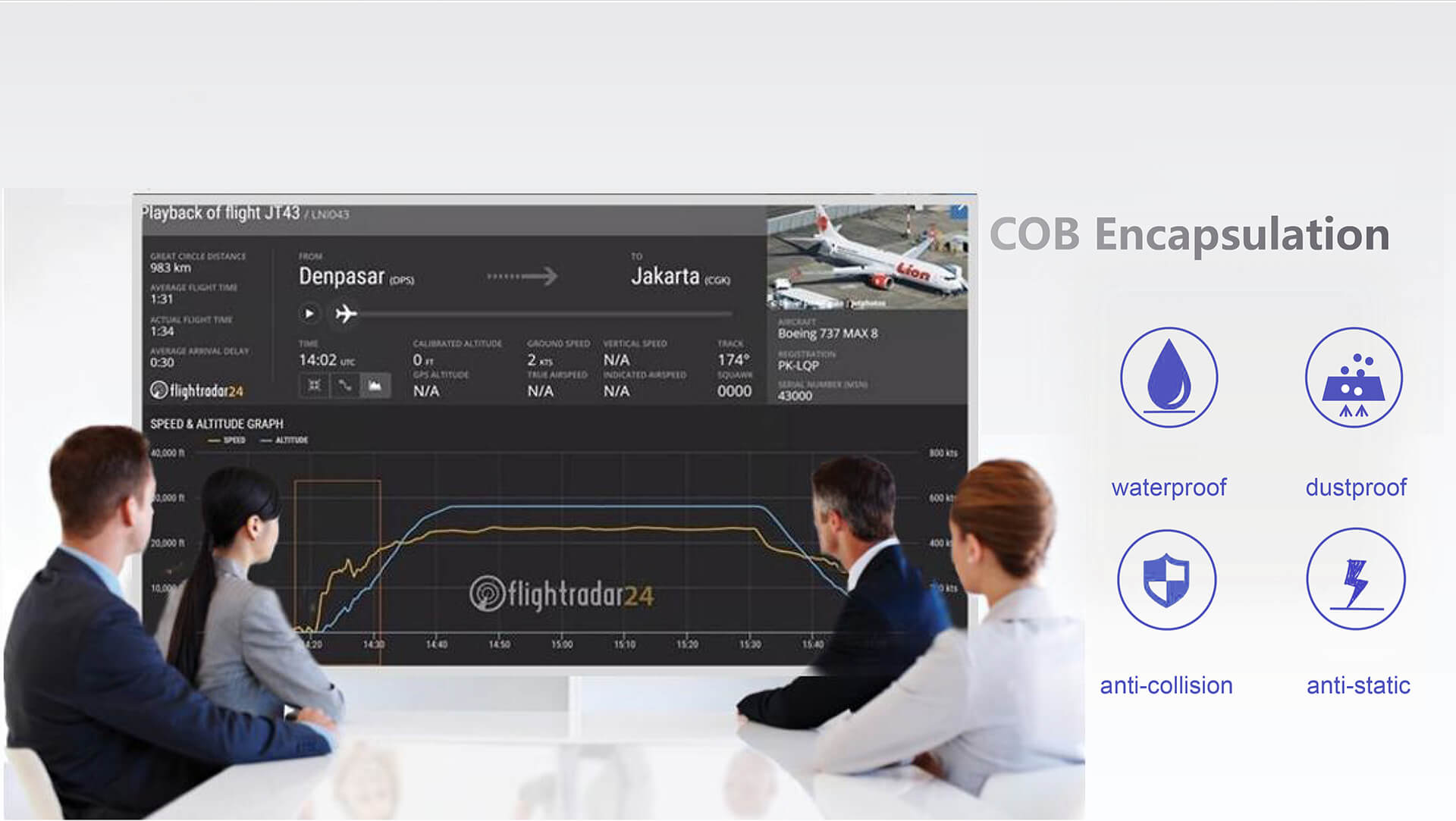

1. waterproof,dustproof,anti-collision,anti-static

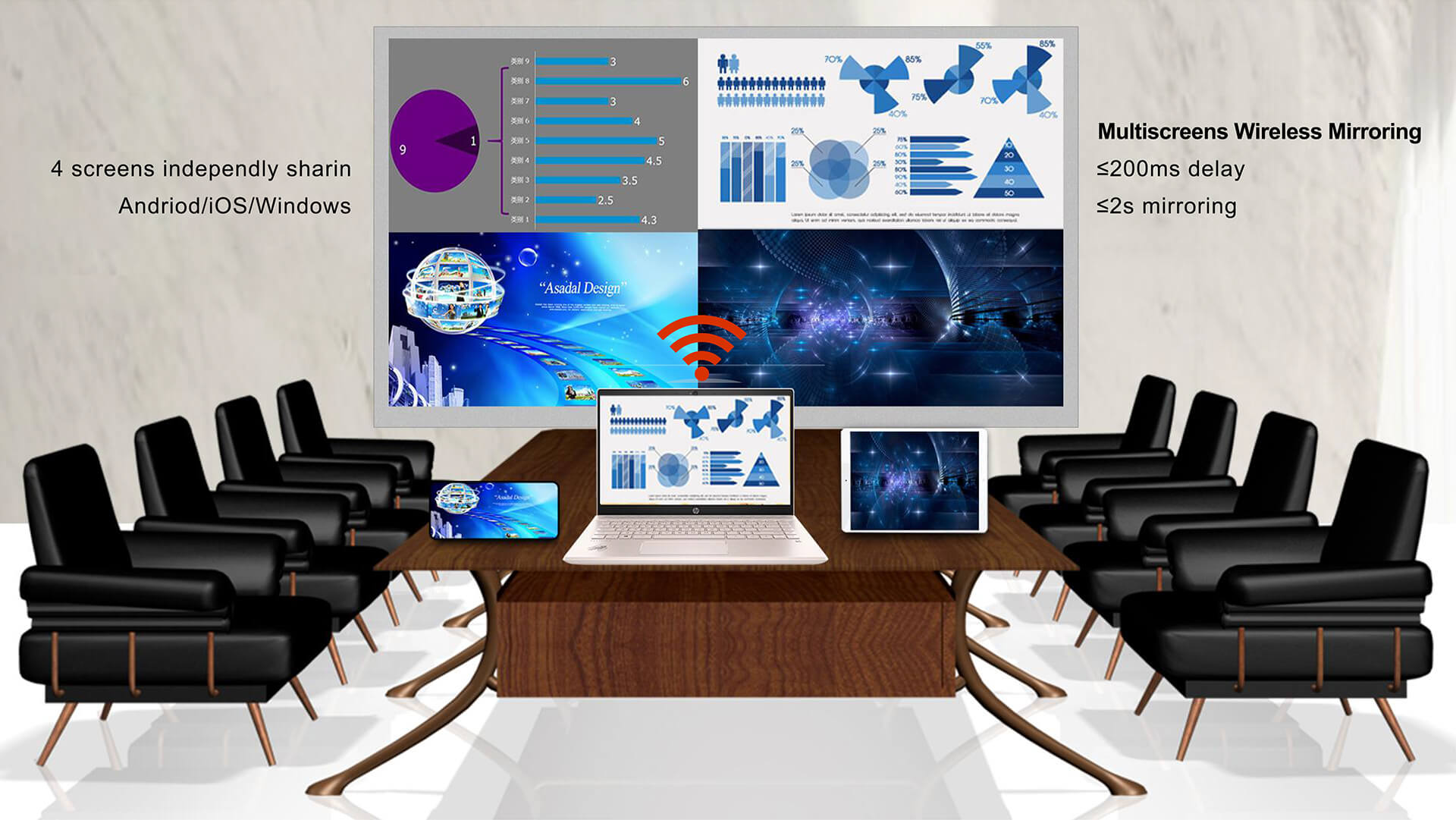

2. Multiscreens wireless mirroring

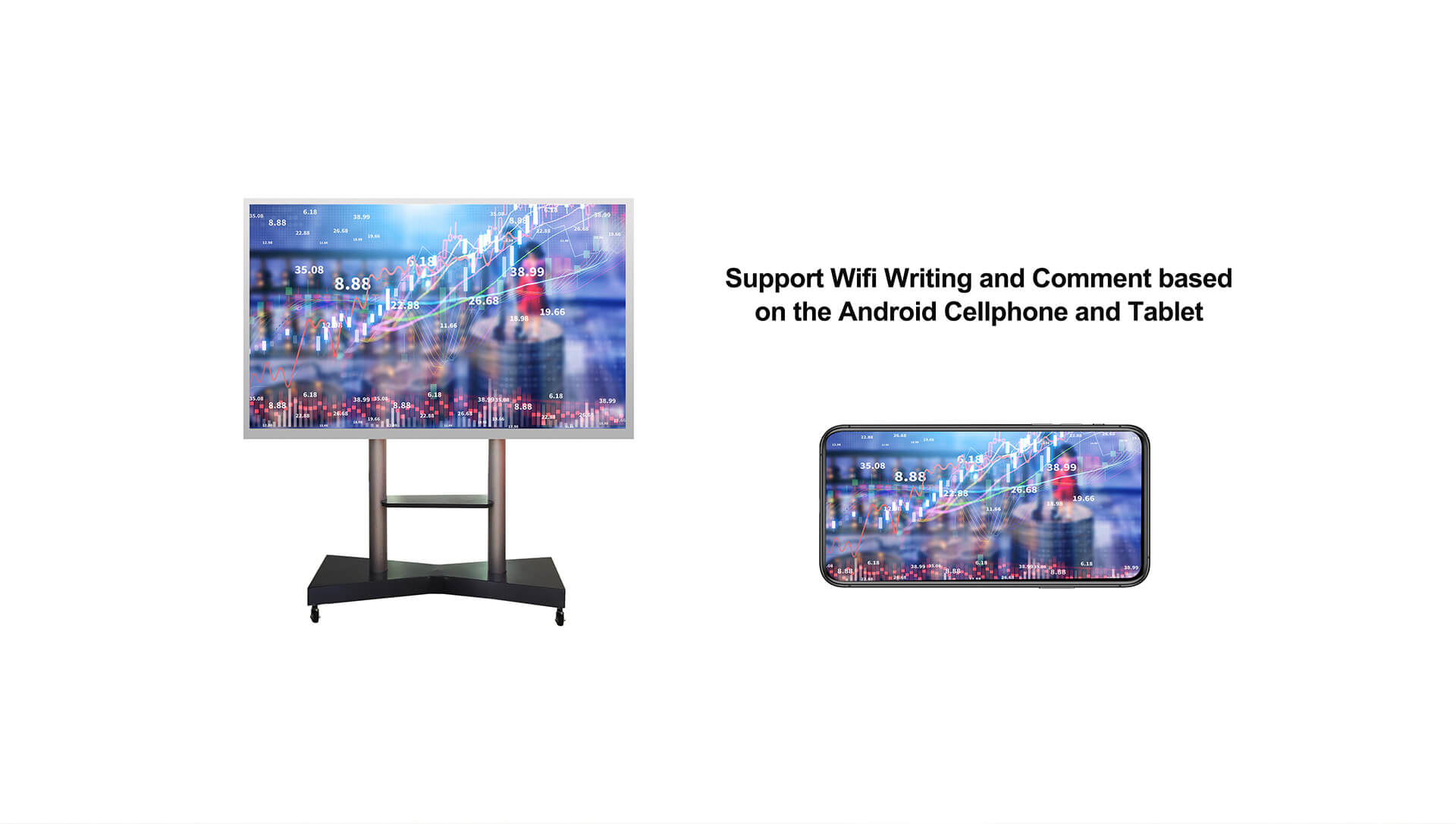

3. Support Wifi writing and comment based on the Android Cellphone and tablet
4. Can be connected to the mouse,keyboard,camera ,loudspeaker and laser pointer
5. Bigger than bigger,Seamless plicing

Get A Quote

Product Series Model


P0.9375

P1.25

P1.5625

Technical Parameters

Fine Pixel Pitch COB All-one conference LED display (TV)


Product specification
Pixel PitchP0.9375P1.25P1.35
Screen Size/Inches811083.05*1.8m
Scree Size with Frame1.85m*1.125m2.45m*1.46m3.05*1.8m
LED EncapsulationCOBCOBCOB
Screen Resolution1920*10801920*10801920*1080
Aspect Ration16:09:0016:09:0016:09:00
Pixel PitP0.9375P1.25P1.5625
Refresh Rate3840HZ3840HZ3840HZ
Brightness350cd/㎡350cd/㎡350cd/㎡
Viewing Angle≥170°≥170°≥170°
Contrast Ratio10000:110000:110000:1
Color Temperature3200k-9300k3200k-9300k3200k-9300k
Grey Scale14bits14bits14bits
Weight150kg220kg300kg
Average power consumption0.36kw0.96kw1kw
Maximum power consumption1.17kw2.08kw3.25kw
Installation&MaintenanceFront installation & maintenance
Adviced viewing distance≥1.5m≥2.5m≥3m
Adviced Conference room30-50㎡50-90㎡90-120㎡
