Outdoor Display OA Pro

l Energy-Saving with Low Power Consumption.
After utilizing the technology of common cathode to FC series of LED display, its average power consumption has got lower than traditional LED display by 30%~70%.

l Ultra-Lightweight and Thinness.

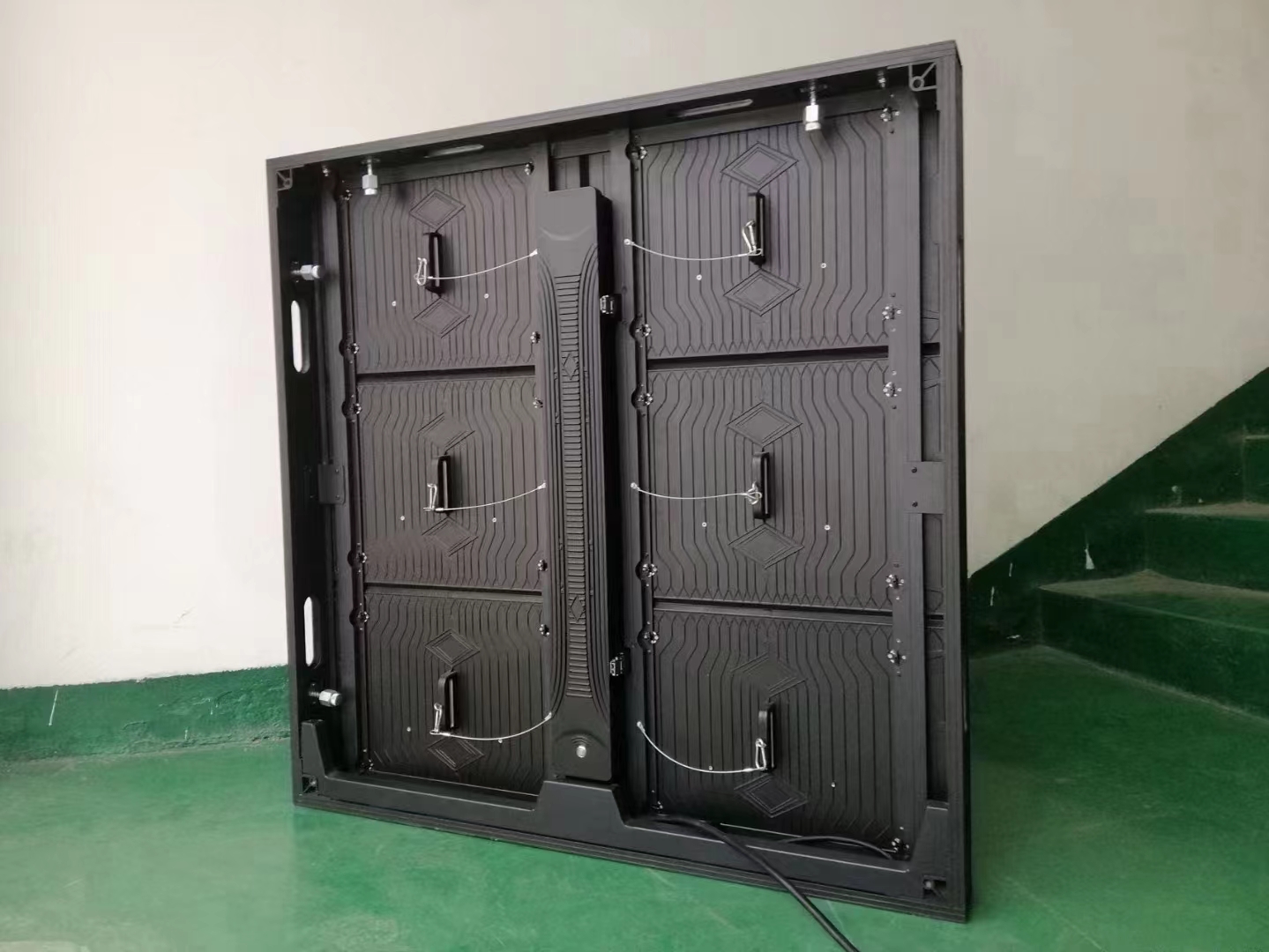

The weight of single module is just 2KG; Size of standard cabinet is 960*960mm, a standard cabinet is comprised of 6 modules, material is aluminum profile cabinet, its weight is just 25KG. To compare with Iron cabinet (35KG) and die-casting aluminum cabinet (28.5KG), the FC series of LED display has superior structural design, to make the whole of display be more light and thinness.

l Its structure is simple, Wireless Design.
FC series of aluminum module LED display is to adopt hard link, wireless design, simple and tidy, it is beautiful appearance.

l Strong Environmental Adaptability.
It is ultra-low temperature rise, low decay, it can work normally under the temperature of 80 degree at most, and work normally under minus 40 degree at least, moreover, it can work on seaside normally in the long run, which has strong ability for salt spray resistance.

l Fire Resistance.
Aluminum module is mental material, it has high melting point, even if outdoor environmental temperature is high, aluminum module LED display is not self-ignited as well, it also doesn’t distort because of high temperature, also doesn’t become combustion improver of other combustive substance.

l Great Thermal Conductivity.
Aluminum module has nice thermal conductivity, it can dissipate heat to outside from inner display fast, no need install fan, it can adapt more harsh outdoor environmental condition.

l Easy to Realize front and rear maintenance.
FC series of LED display is to adopt reasonable structure, easy to realize front and rear maintenance, convenience and simple, it can save clients a lot of maintenance time and cost.

l High Refreshing, High Grayscale.

Ultra-high grayscale 16 bit above, ultra-high refreshing 3840Hz above, its picture display is exquisite and true, brightness is stable and even, no flicker, no “Particle” sense.

l IC Driving.
It has the function of list up and down hidden, high refreshing ratio, dark dot amended in first line, low grayscale amended, color cast and spot amended, etc

l Big Visual Angle, High Contrast Ratio.
It is to adopt 2727 LED chip, primary color is Red, Green and Blue, nice conformity, contrast ratio can be up to 5000:1, visual angle can be up to above 140°, high reliability, long lifespan.
