Outdoor Display OA-F
Outdoor | |||||
Pixel Pitch | 3.7 | 5.2 | 6.5 | 7.8 | 9.5 |
LED lamp | SMD3535 | SMD3535 | SMD3535 | SMD3535 | SMD3535 |
Density | 72972dots/m2 | 36980dots/m2 | 23661dots/m2 | 15625dots/m2 | 10000dots/m2 |
Brightness | 5500-6000nits | 5500-6000nits | 5500-6000nits | 5500-6000nits | 6000-6500nits |
IP rating | IP65 | IP65 | IP65 | IP65 | IP65 |
Cabinet Materiel | Sheet Metal | ||||
Scan | 14scan | 9scan | 6scan | 5scan | 2scan |
Module weight | 1kg | 1kg | 1kg | 1kg | 1kg |
Cabinet Weight | 35kg | 35kg | 35kg | 35kg | 35kg |

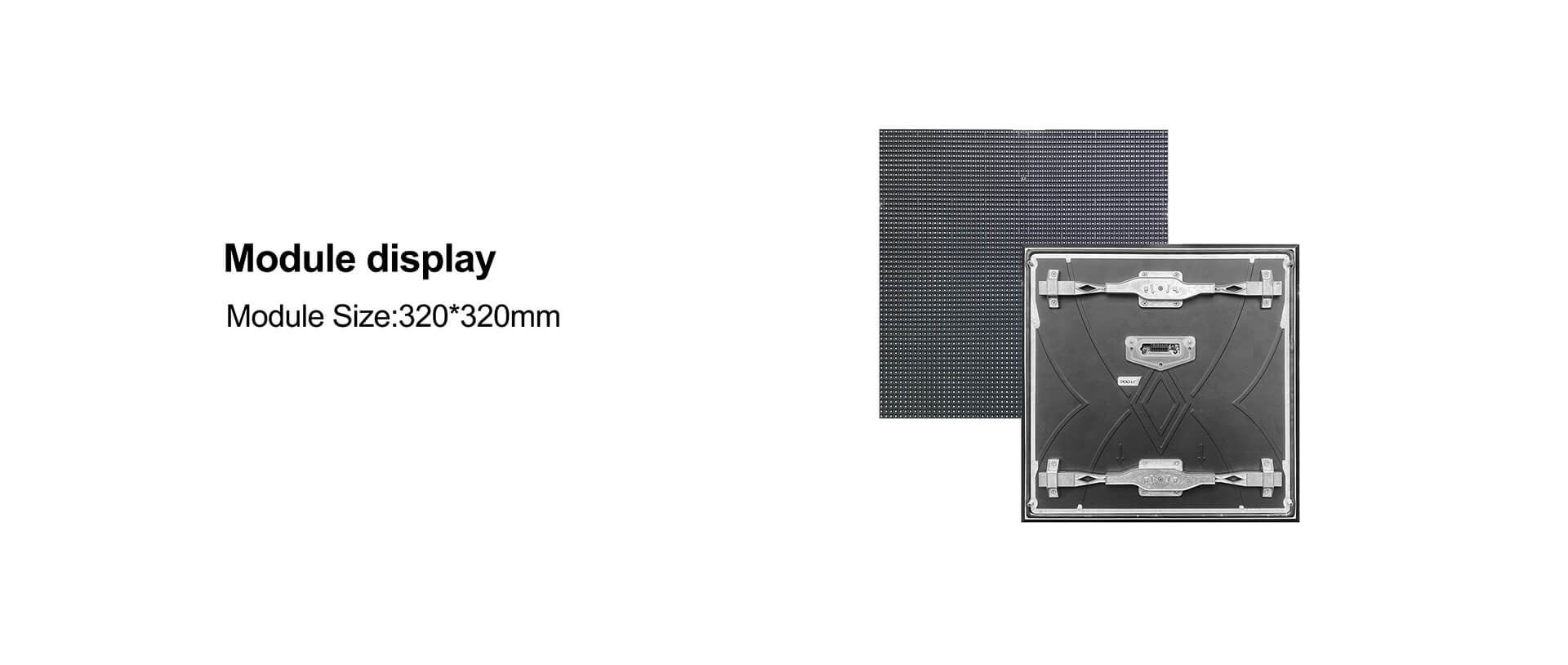

Module size | 320*320mm | 320*320mm | 320*320mm | 320*320mm | 320*320mm |
Cabinet size | 960*960mm | 960*960mm | 960*960mm | 960*960mm | 960*960mm |
Module pixel | 86*86dots | 61*61dots | 49*49dots | 40*40dots | 32*32dots |
Cabinet pixel | 259*259dots | 184*184dots | 147*147dots | 120*120dots | 96*96dots |
Max Power | 570w/sqm | 570w/sqm | 570w/sqm | 570w/sqm | 570w/sqm |
Average Power | 150w/sqm | 150w/sqm | 150w/sqm | 150w/sqm | 150w/sqm |
Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | ||||
Control way | synchronous/asynchronous | ||||
Brightness control | 256 level | ||||
Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | ||||
Work humidity | 10% ~ 90% | ||||
Work temperature | ﹣20 ~﹢50℃ |
