Rental Screen Series L5

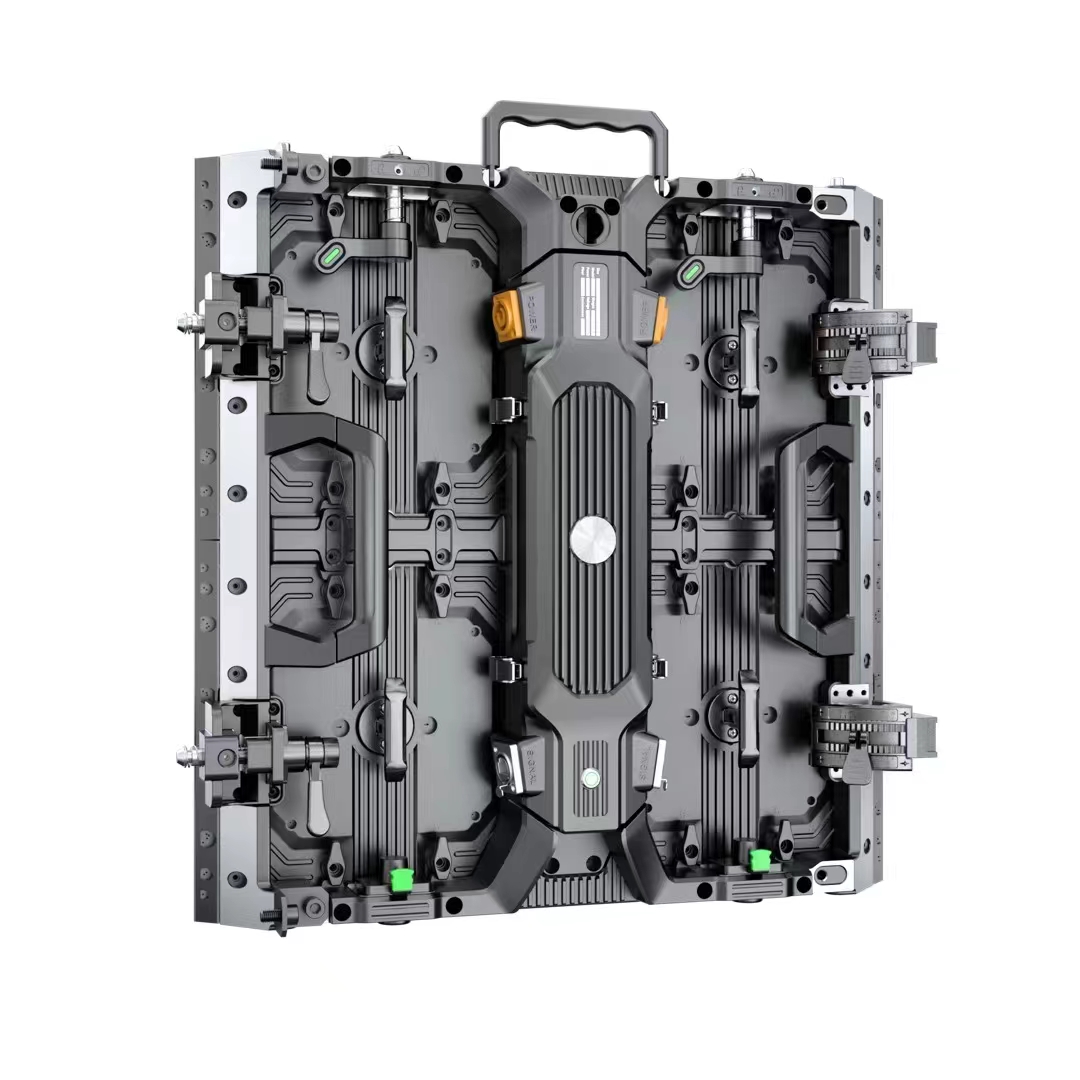

China LIKELED led display manufacturer of L5 series rental screens.It has straight and curve options, curve angel is ±15°.It can be installed quickly by one-hand operation.The ergonomic design fits your hand shape, easy to grip the cabinet integratedIntegrated power cabinet design saves maintenance time
Double quick lock design, more durable, single operation, quick installation and maintenance
Modular design of power control cabinet, no wire is needed to connect with the module
The wireless material distribution inside the power cabinet is clean and tidy, and the signal is stable
The cabinet is light and thin
Unique module design, support module left and right interchangeably
Private design of PCB, no signal interference, 2.0mm thickness, stable performance
Mask private mold design, wide viewing angle, no reflection, showing better picture effect
Product Series Model
P2.6
P2.9
P3.9
P4.8
Technical Parameters
Rental Screen Series L5
| Indoor | Outdoor | |||||
| Pixel Pitch | 2.604 | 2.976 | 3.91 | 4.81 | 3.91 | 4.81 |
| LED lamp | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD1921 | SMD1921 |
| Density | 147456dots/m2 | 112896dots/m2 | 65536dots/m2 | 43264dots/m2 | 65536dots/m2 | 43264dots/m2 |
| Brightness | 800-1000nits | 800-1000nits | 800-1000nits | 800-1000nits | ≥ 3500nits | ≥ 3500nits |
| IP rating | IP31 | IP31 | IP31 | IP31 | IP65 | IP65 |
| Cabinet Materiel | Die-casting Aluminum | Die-casting Aluminum | ||||
| Scan | 24scan | 21scan | 16scan | 13scan | 16scan | 13scan |
| Module weight | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg |
| Cabinet Weight | 7.5kg | 7.5kg | 7.5kg | 7.5kg | 8kg | 8kg |
| Module size | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*500mm | 250*500mm |
| Cabinet size | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm |
| Module pixel | 96*96dots | 84*84dots | 64*64dots | 52*52dots | 64*128dots | 52*104dots |
| Cabinet pixel | 192*192dots | 168*168dots | 128*128dots | 104*104dots | 128*128dots | 104*104dots |
| Max Power | 500w/sqm | 500w/sqm | 500w/sqm | 500w/sqm | 550w/sqm | 550w/sqm |
| Average Power | 160w/sqm | 160w/sqm | 160w/sqm | 160w/sqm | 200w/sqm | 200w/sqm |
| Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | |||||
| Control way | synchronous/asynchronous | |||||
| Brightness control | 256 level | |||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||||
| Work humidity | 10％ ～ 90％ | |||||
| Work temperature | ﹣20 ～﹢65℃ | |||||
