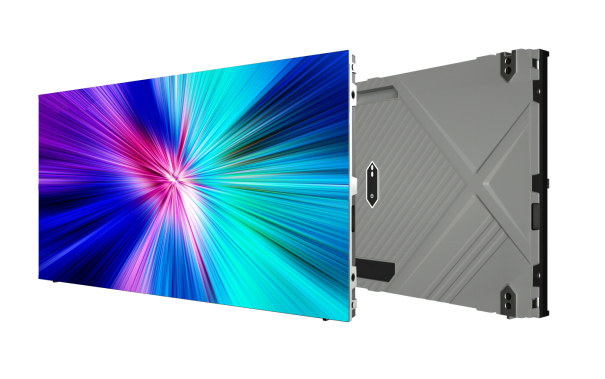

Fine Pixel Pitch COB Fine Pixel Pitch LM Pro

     Product features

1) The module adopts cable-free connection design, compatible modules for up, down, left and right, which is convenient and fast to install;

2) The intelligent module is designed to automatically read and upload the screen correction data, ensure the screen consistency after module replacement, and bring better use experience;

3) Receiving card backup optional and power backup to completely eliminate the black screen problem caused by failure;

4) Internal wireless material design, switching power supply adopts high elastic large-area copper conductive, which is far safer than traditional;

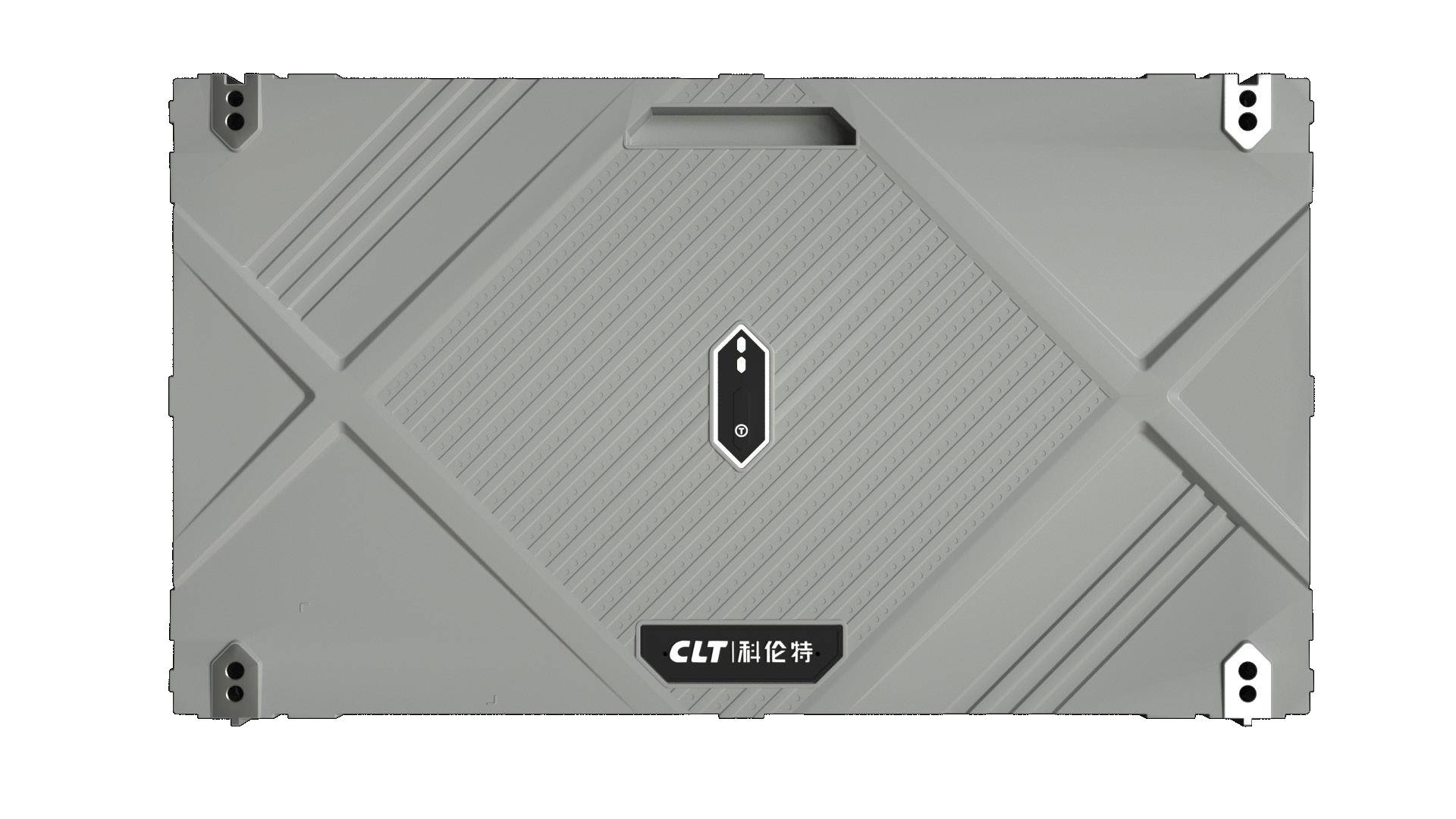

5) The cabinet is formed by die casting, and the high-precision light and thin material,which is lighter than almost 98% of the die-casting aluminum cabinet of the same specification and size on the market, effectively reducing the difficulty of screen splicing and transportation cost;

6) The hidden wiring design between boxes makes the whole screen more beautiful;

g) The cabinet is provided with floor protection to effectively protect the bottom lamp beads. The concave convex platform is designed for left and right positioning. The box body quick lock can be selected to improve the installation efficiency of the screen body by more than twice;

7) The right angle installation design of free steel structure can hardly cause damage to the installation site and meet the requirements of more high-end places;

8) Free-steel frame wall installation, greatly reducing the total installation thickness, saving cost, shortening construction time, and ensuring the integrity of wall structure to the greatest extent;
